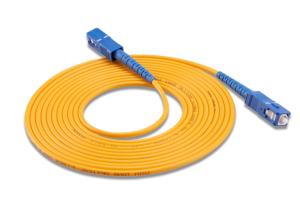

SC / UPC to SC / UPC Single-mode Simplex with 3mm PVC Jacket Fiber Optical Patch cord
HTFuture 9/125um Single-mode Fiber Optical Patch cord is widely applied in fiber network cabling system, such as FTTX, CATV, LAN and Fiber Communication System. We offer patch cord with various connectors including: SC, LC, FC, ST, MU, D4, DIN, E2K etc with Ultra-Polished (UPC) and Angle-Polished (APC).
Specifications
| Parameter |
Specifications |
| Matched Connector Type |
SC, LC, FC, ST, MU, D4, DIN, E2000 |
| Fiber Type |
Single mode |
| Insertion Loss |
Typical≤0.2dB, Maximum≤0.3dB |
| Return Loss |
≥50dB (PC), ≥60dB (APC) |
| Repeatability |
≤0.1 |
| Durability |
≤0.2dB typical change, 1000 mating |
| Interchangeability |
≤0.2dB |
| Tensile strength |
>70N |
| Operating Temperature |
-20 ~ +70oC |
Fiber Cable Performance Specifications
| Fiber type |
Min. Bandwidth |
Distance |
Attenuation |
| 9/125um |
1310/1550nm
Approx 100 Terahertz
|
Up to 100km Varies by transceiver |
1310/1550nm
0.4/0.3dB/km
|
Features:
l Low insertion loss value
l High return loss
l Stable capability and high reliability
l Excellent mechanical capability
l Good exchangeability
l Good Durability
l Standard: Telcordia GR-326-CORE, NTT-MU hardware compatibility, Compatible with DIN 47256, EN 186-270
Applications:
l CATV, FTTX
l Telecom network
l Optical test equipment
l Local area networks
l Wide area networks
l Data processing Networks
l Premise installations
l Active device termination
